MRAP

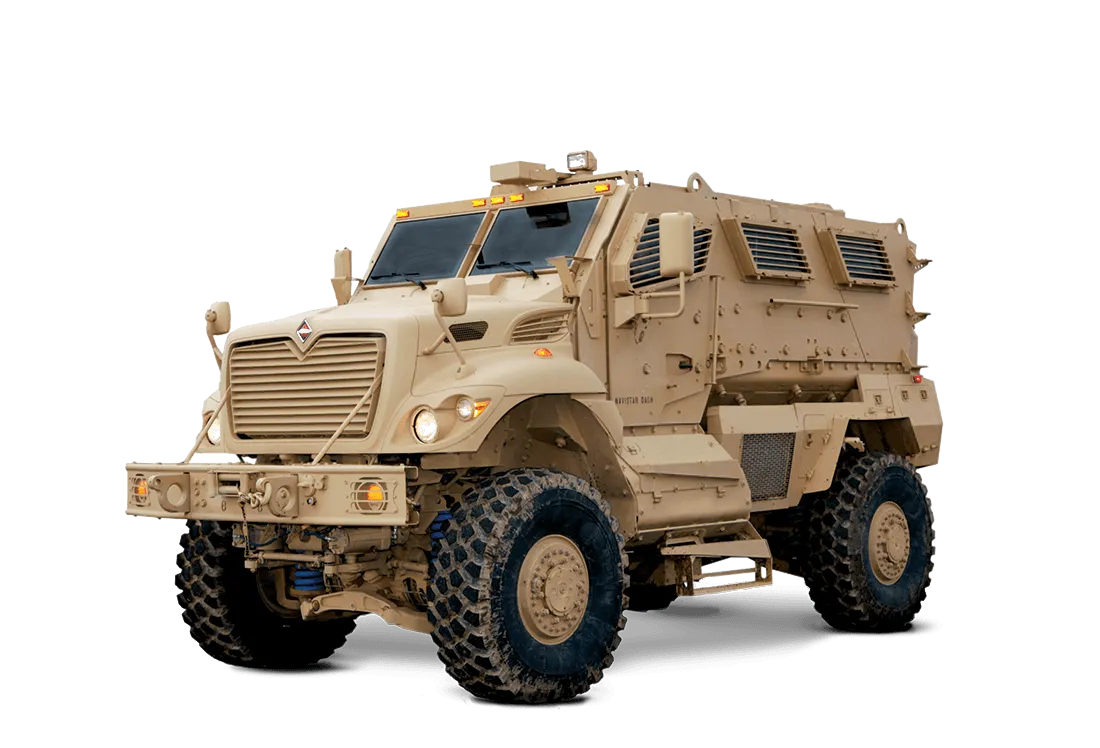

Horsepower: 375 hp @ 2,000 rpm; 450 hp optional
Torque: 1,250 lb-ft @ 1,200 rpm; 1,350 lb-ft optional
Suspension: Coil spring fully independent suspension
GVWR: 46,500 lbs
Width: 103.5”
Length: 261”
Height: 121.4”
Wheelbase: 147"
Searing: up to 4 passengers + 1 gunner
Payload Capacity: 10,000–14,000 lbs
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Configurations:
Troop Carrier (4 troops)
Remote Weapons Station
Horsepower: 280 kw @ 2,000 rpm; 336 kw optional
Torque: 1,695 Nm @ 1,200 rpm; 1,830 Nm optional
Suspension: Coil spring fully independent suspension
GVWR: 21,092 kg
Width: 2,629 mm
Length: 6,629 mm
Height: 3,084 mm
Wheelbase: 3,708 mm
Searing: up to 4 passengers + 1 gunner
Payload Capacity: 4,536–6,350 kg
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Configurations:
Troops Carrier (4 troops)
Remote Weapons Station

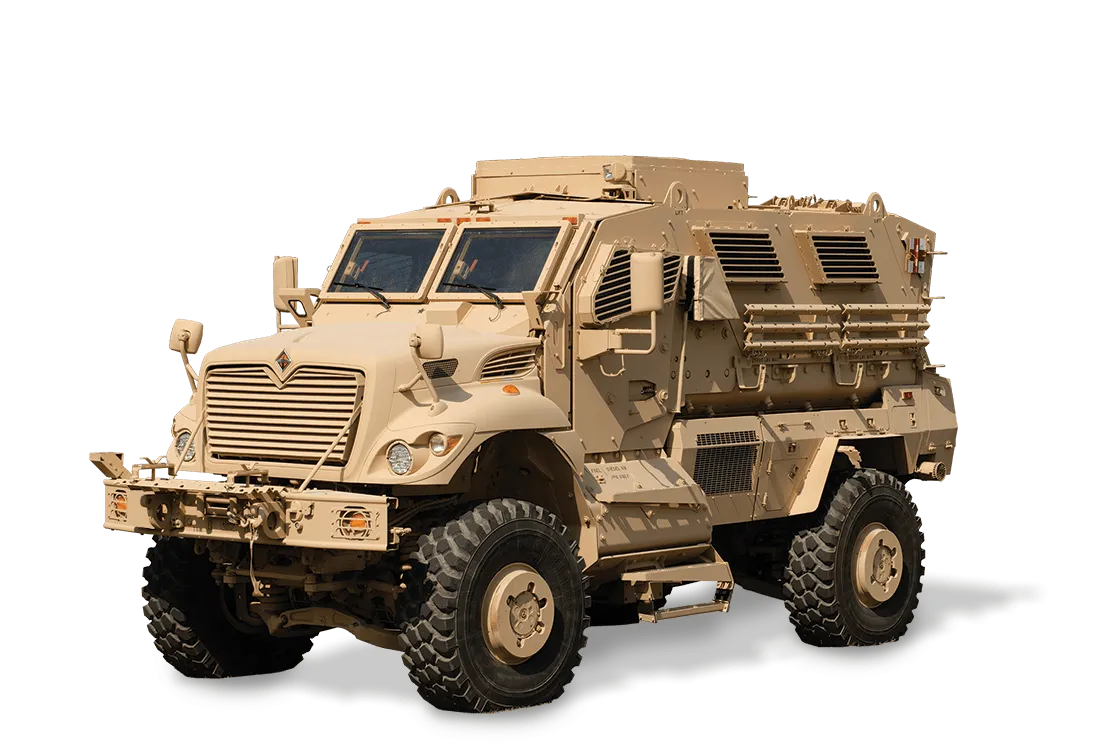

Horsepower: 375 hp @ 2,000 rpm; 450 hp optional
Torque: 1,250 lb-ft @ 1,200 rpm; 1,350 lb-ft optional
Suspension: Coil spring fully independent suspension
GVWR: 53,000 lbs
Width: 104.3”
Length: 276.5”
Height: 130.3”
Wheelbase: 154.9”
Searing: up to 6 passengers + 1 gunner
Payload Capacity: 5,800 - 9,680 lbs
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Configuration: Troop Carrier (4 to 6 troops)
Horsepower: 280 kw @ 2,000 rpm; 336 kw optional
Torque: 1,695 Nm @ 1,200 rpm; 1,830 Nm optional
Suspension: Coil spring fully independent suspension
GVWR: 24,040 kg
Width: 2,649 mm
Length: 7,026 mm
Height: 3,310 mm
Wheelbase: 3,934 mm
Searing: up to 6 passengers + 1 gunner
Payload Capacity: 2,630 - 4,390 kg
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Configuration: Troops Carrier (4 to 6 troops)

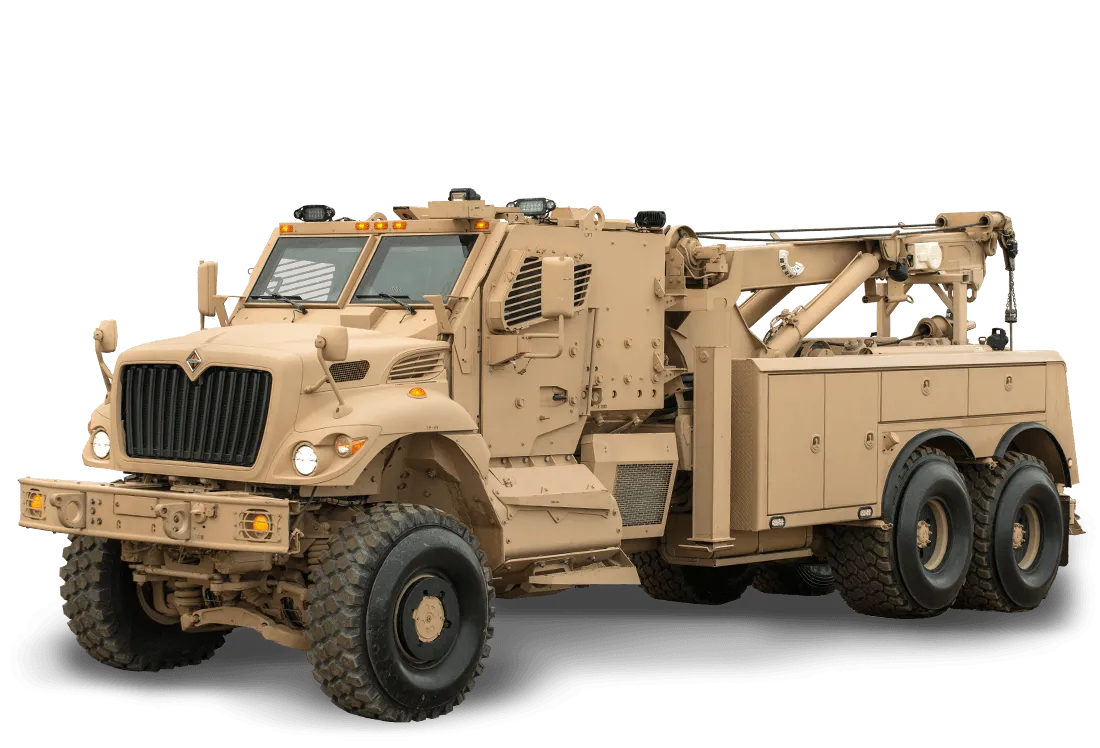

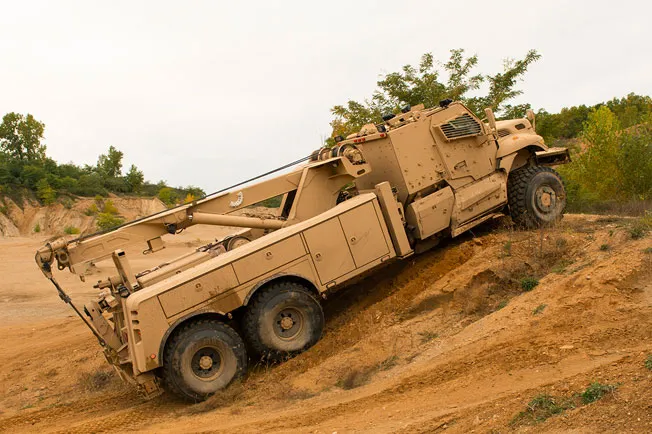

Horsepower: 450 hp @ 2,000 rpm
Torque: 1,350 lb-ft @ 1,200 rpm
Suspension:
Front : 27,000 lbs independent suspension system
Rear: 67,200 lbs rated 62” tandem walking beam
GVWR: 94,199 lbs
Width: 103.5”
Length: 431”
Height: 129”
Wheelbase: 291.3”
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Body Type: Recovery body with 30-ton boom and boom stabilizer, improved cable management system
Mobility:
Independent Front Suspension w/15” wheel travel
Super Single Tires w/ CTIS reduce ground pressure
Excellent off-road capability
Recovery:
Unique boom recovery lift and radius
Unique drag winch capability
Highly adaptable hardware for broad range of recovery, including Stryker and all MRAP
Horsepower: 336 kw @ 2,000 rpm
Torque: 1,830 Nm @ 1,200 rpm
Suspension:
Front : 12,247 kg independent suspension system
Rear: 30,481 kg rated 1,575 mm tandem walking beam
GVWR: 42,728 kg
Width: 2,629 mm
Length: 10,947 mm
Height: 3,277 mm
Wheelbase: 7,399 mm
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Body Type: Recovery body with 30-ton boom and boom stabilizer, improved cable management system
Mobility:
Independent Front Suspension w/381 mm wheel travel
Super Single Tires w/ CTIS reduce ground pressure
Excellent off-road capability
Recovery:
Unique boom recovery lift and radius
Unique drag winch capability
Highly adaptable hardware for broad range of recovery, including Stryker and all MRAP

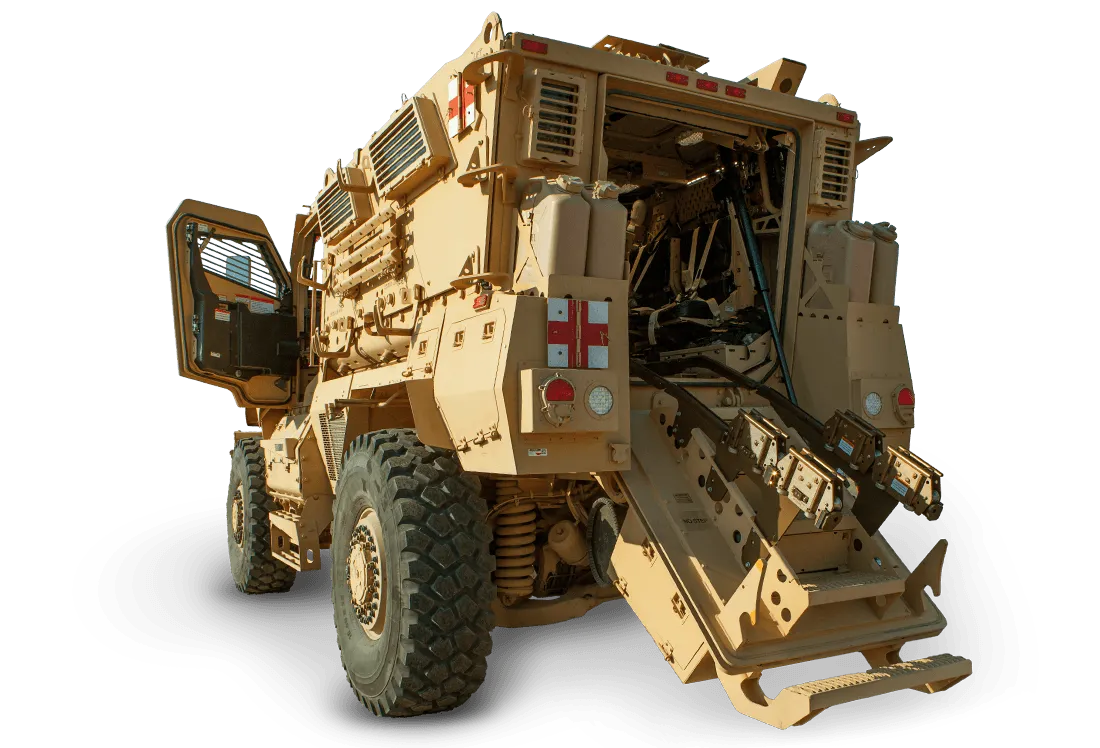

Horsepower: 375 hp @ 2,000 rpm; 450 hp optional
Torque: 1,250 lb-ft @ 1,200 rpm; 1,350 lb-ft optional
Suspension: Coil spring fully independent suspension
GVWR: 53,000 lbs
Width: 104.3”
Length: 276.5”
Height: 130.3”
Wheelbase: 154.9”
Searing: up to 4 passengers + 1 Medic
Payload Capacity: 5,800 - 7,500 lbs
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions

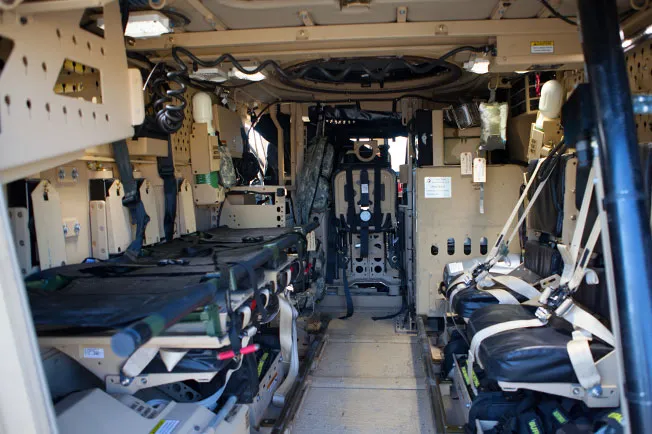

Configurations: Configured to seat 1 medic and carry up to 4 ambulatory patients or two litter patients; includes various features and compartments designed to stow and support medical equipment.
Horsepower: 280 kw @ 2,000 rpm; 336 kw optional
Torque: 1,695 Nm @ 1,200 rpm; 1,830 Nm optional
Suspension: Coil spring fully independent suspension
GVWR: 24,040 kg
Width: 2,649 mm
Length: 7,026 mm
Height: 3,310 mm
Wheelbase: 3,934 mm
Searing: up to 4 passengers + 1 Medic
Payload Capacity: 2,630 - 3,402 kg
Armor Protection: Full range of Ballistic IED and Mine Blast Protection Solutions
Configurations: Configured to seat 1 medic and carry up to 4 ambulatory patients or two litter patients; includes various features and compartments designed to stow and support medical equipment.
After combat operations have taken their toll on military equipment, ND Defense can reset previously deployed and battle-damaged MaxxPro vehicles to 10-20, or like new, condition. We offer customized configurations and scope to meet mission and budgetary requirements. These comprehensive upgrade and repairs improve vehicle performance and life cycle.
